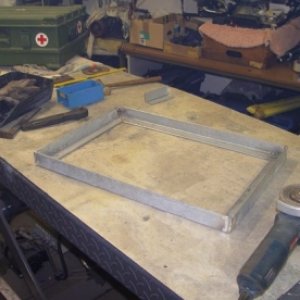

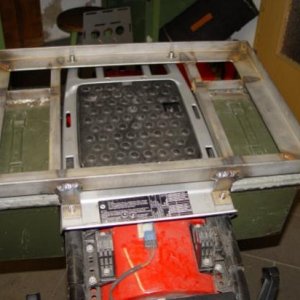

... und fing an mir einen Rahmen für die große Box zu bauen.
Gismo
13.06.2010
0
0
Der sollte anstelle des Soziussitzes montiert werden können. Als Haltepunkte nahm ich vorn die Befestigungslöcher des Soziushaltegurtes und hinten boh
Gismo
13.06.2010
0
0

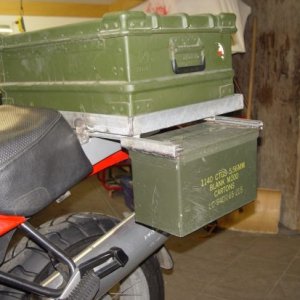

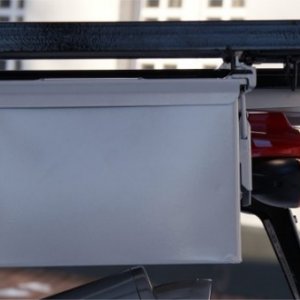

Dann wurde noch Halterungen für die Munitionskisten gebaut.
Gismo
13.06.2010
0
0
Zur besseren Beladbarkeit konstruierte ich diese so, das ich sie seitlich rausziehen kann.
Gismo
13.06.2010
0
0

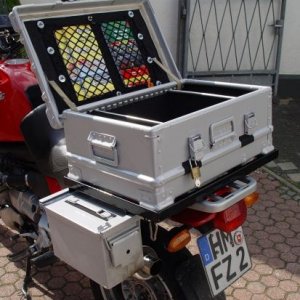

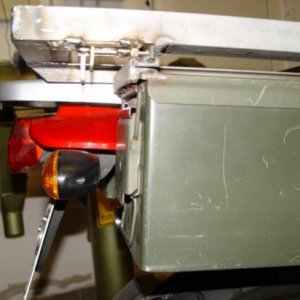

Gesichert werden sie von einem Schieberiegel, den man mittels Vorhängeschloß auch abschließen kann.
Gismo
13.06.2010
0
0
Die erste Anprobe sah dann auch schon vielversprechend aus.
Gismo
13.06.2010
0
0

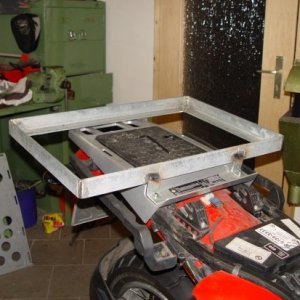

Allerdings sah mir der Rahmen zu wuchtig in der Seitenansicht aus und darüber hinaus war ich unglücklich über die zum Teil mißratenen Schweißnähte. Me
Gismo
13.06.2010
0
0
So wanderte der ursprüngliche Rahmen schließlich in den Schrott und ich baute ihn noch mal mit unbehandeltem 20/40/3mm Stahlwinkelprofil nach. Jetzt w
Gismo
13.06.2010
0
0
Den Rahmen und die Munitionskisten ließ ich dann pulverbeschichten. Die Kisten bekamen die Farbe weißaluminium, da diverse Fahrwerks- und andere Teile
Gismo
13.06.2010
0
0

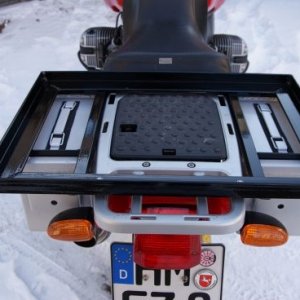

Der Rahmen wurde schwarz glänzend beschichtet. Eine erste Montage erfolgte noch bei eisigen Temperaturen. Aber mit dem Ergebnis war ich schon ganz zuf
Gismo
13.06.2010
0
0
Der Rahmen läßt übrigens genug Raum um jederzeit nach Abnehmen der Topbox ans Werkzeug zu kommen.
Gismo
13.06.2010
0
0

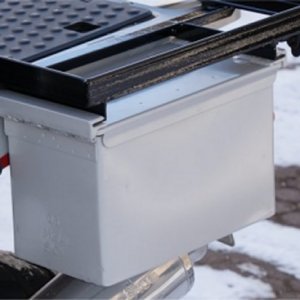

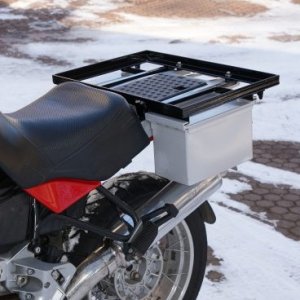

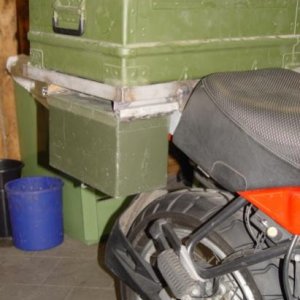

In der Seitenansicht ist das Schiebesystem der Munitionskisten und der Verschluß gut zu sehen.
Gismo
13.06.2010
0
0
Die Konstruktion fiel bewußt stabil und einfach aus. Zum Einen wollte ich sicher gehen, das im Falle eines Umfallers die Kisten nichts abbekommen, zum
Gismo
13.06.2010
0
0

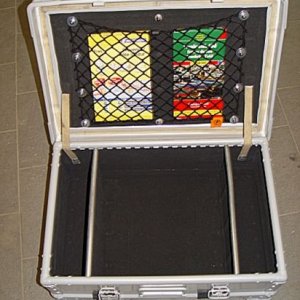

Die Topbbox aus Militärbeständen ist deutlich robuster, als ihre zivilen Pendants. Neben aufgenieteten Stahlecken besaß sie auch Buchenholzleisten an
Gismo
13.06.2010
0
0

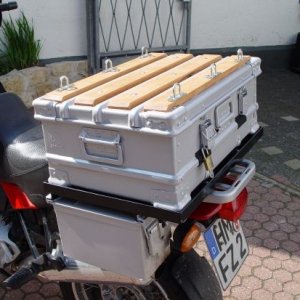

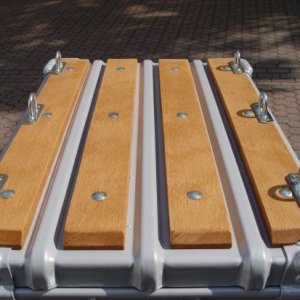

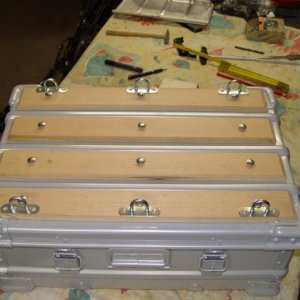

Die Buchenholzleisten mochte ich nicht lackieren. Ich schliff sie und ölte sie mehrfach mit Teaköl ein. Sie sind mit Acryl aufgesetzt, damit kein Wass
Gismo
13.06.2010
0
0
Die Topbox läßt sich leicht abnehmen und wie ein Koffer mit in die Pension nehmen, während die seitlichen Koffer zum Verbleib am Moped gedacht sind.
Gismo
13.06.2010
0
0
Funktionsprobe im fast fertigen Zustand!
Gismo
13.06.2010
0
0

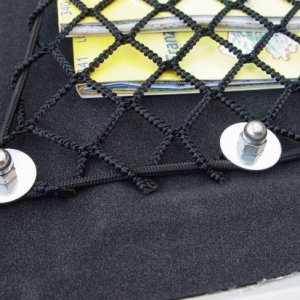

Die Topbox und die Seitenkoffer kleidete ich nach "Papamanns" Vorschlag mit gewebearmirten, selbstklebenden Moosgummi aus. Das läßt sich prima verarbe
Gismo
13.06.2010
0
0
Auf die überstehenden Gewinde der Schrauben legte ich dann je eine große Unterlegscheibe, die auf der Mutter ruht, die die Leisten hält, und schraubte
Gismo
13.06.2010
0
0

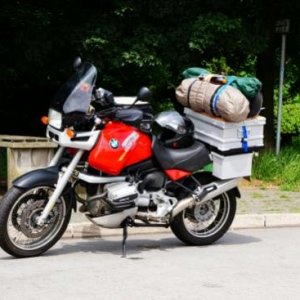

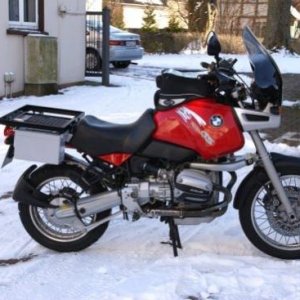

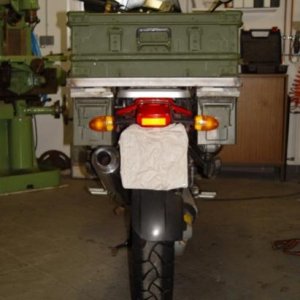

Der komplette Koffersatz stört die Silhuette des Mopeds kein bischen! Er baut so schmal, das ich überall problemlos durchkomme.
Gismo
13.06.2010
0
0

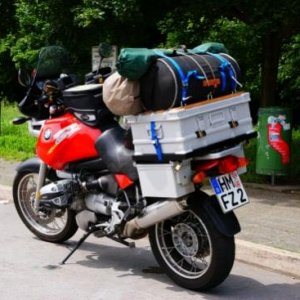

Das Fahren gestaltet sich exakt so, als hätte man eine Sozia dabei. Der Agilität auf engen Alpenpässen tut das keinen Abbruch. Es fährt sich prima so!
Gismo
13.06.2010
0
0

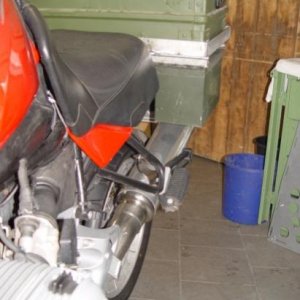

Da ich leider für die GS etwas zu kurze Beine habe, ist sie mir einmal beim Rangieren im Gelände umgefallen. Dabei zeigte sich das der Rahmen der ihm
Gismo
13.06.2010
0
0

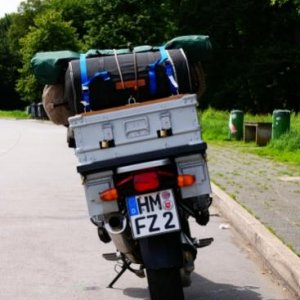

Anläßlich eines Kurztrip durch die Schweiz, Südfrankreich und Norditalien mit dem Zelt oben drauf hat sich das System gut bewährt.
Gismo
13.06.2010
0
0
Muh!
